Efficient Multi-Word Compare-and-Swap:
Teaching CAS to Juggle

Here is what we'll cover: first the primitive, then the lower bound, then the algorithmic trick, then our OCaml version and the empirical story.

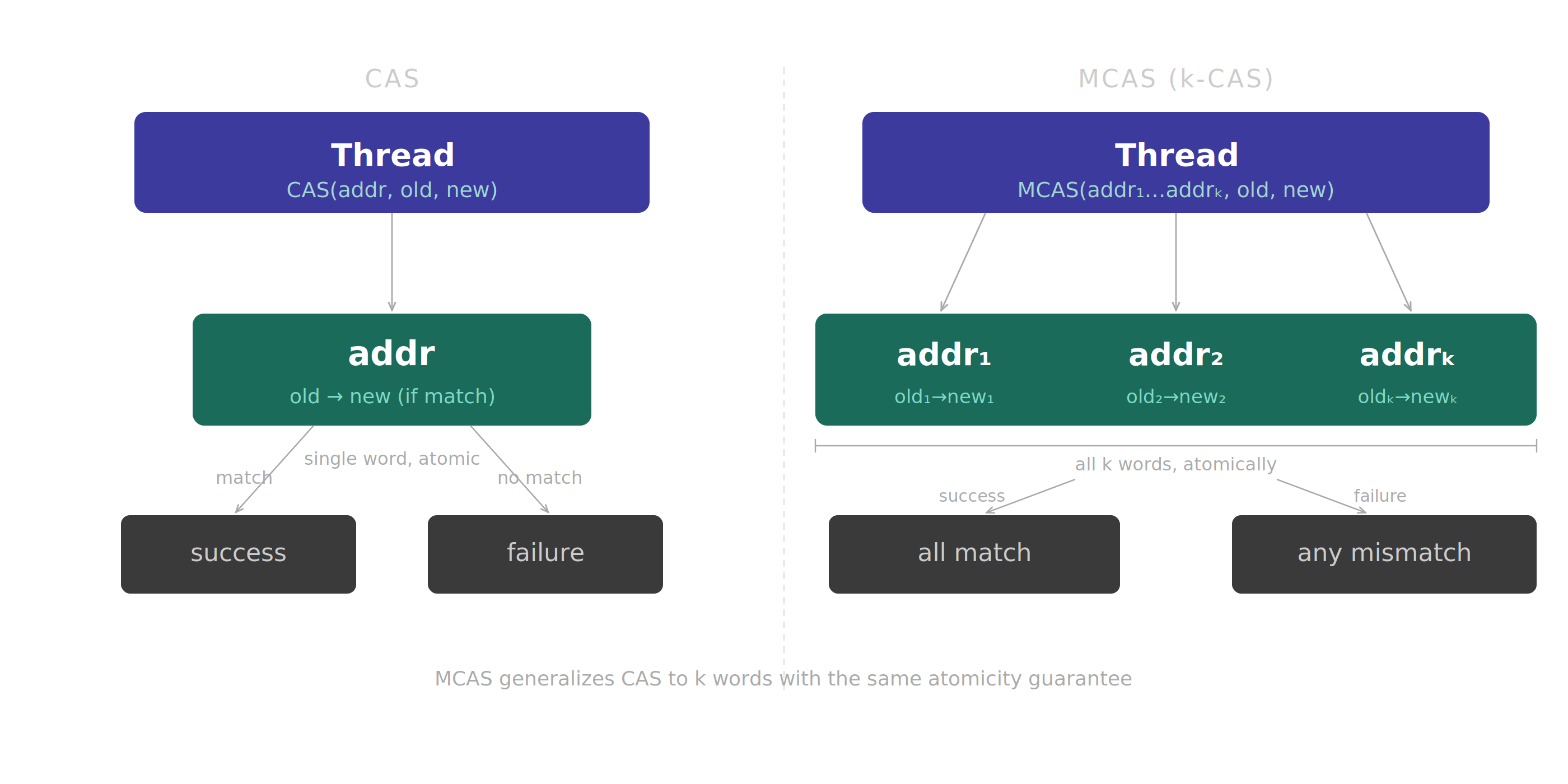

CAS takes one address, one expected value, and one desired value. It checks whether the address still contains the expected value; if yes, it atomically writes the desired value. Otherwise it fails. The whole operation is indivisible: other threads see either the old state or the new state, never a half-state.

MCAS generalizes this to \(k\) locations. An operation receives a list of triples: \[ \langle addr_1, old_1, new_1 \rangle,\ldots, \langle addr_k, old_k, new_k \rangle. \] It succeeds only if every \(addr_i\) still stores \(old_i\). If all checks pass, all locations move to \(new_i\). If even one check fails, no logical update should occur.

• 🎯 Linearizability (Correctness target):

  Every read or MCAS should look as if it happened at one instant between its call and return.

  In English

  No one ever sees the sausage being made. It's either fully done or hasn't started.

• 🏃 Lock-freedom (Progress target):

  If threads continue taking steps, at least one operation eventually completes.

  The Guarantee

  No deadlocks. If a thread crashes while holding something, others just finish its job and move on.

• 🛣️ DAP behavior (Scalability target):

  Operations on disjoint target words should not fight over unrelated shared bottlenecks.

  Traffic Control

  If I'm updating A and B, and you're updating Y and Z, we shouldn't bump into each other in the hallway.

This is already enough to see why MCAS is useful. A concurrent linked structure often needs to update multiple pointers and flags as one logical action. Without MCAS, the programmer simulates multi-location atomicity using marks, helping records, retry loops, and sometimes a quiet prayer to the scheduler. MCAS packages that discipline into one primitive.

The paper first proves a limitation: any lock-free, disjoint-access-parallel implementation of \(k\)-CAS has an execution in which some operation performs CAS on at least \(k\) different locations. This is the "physics says no" part of the story.

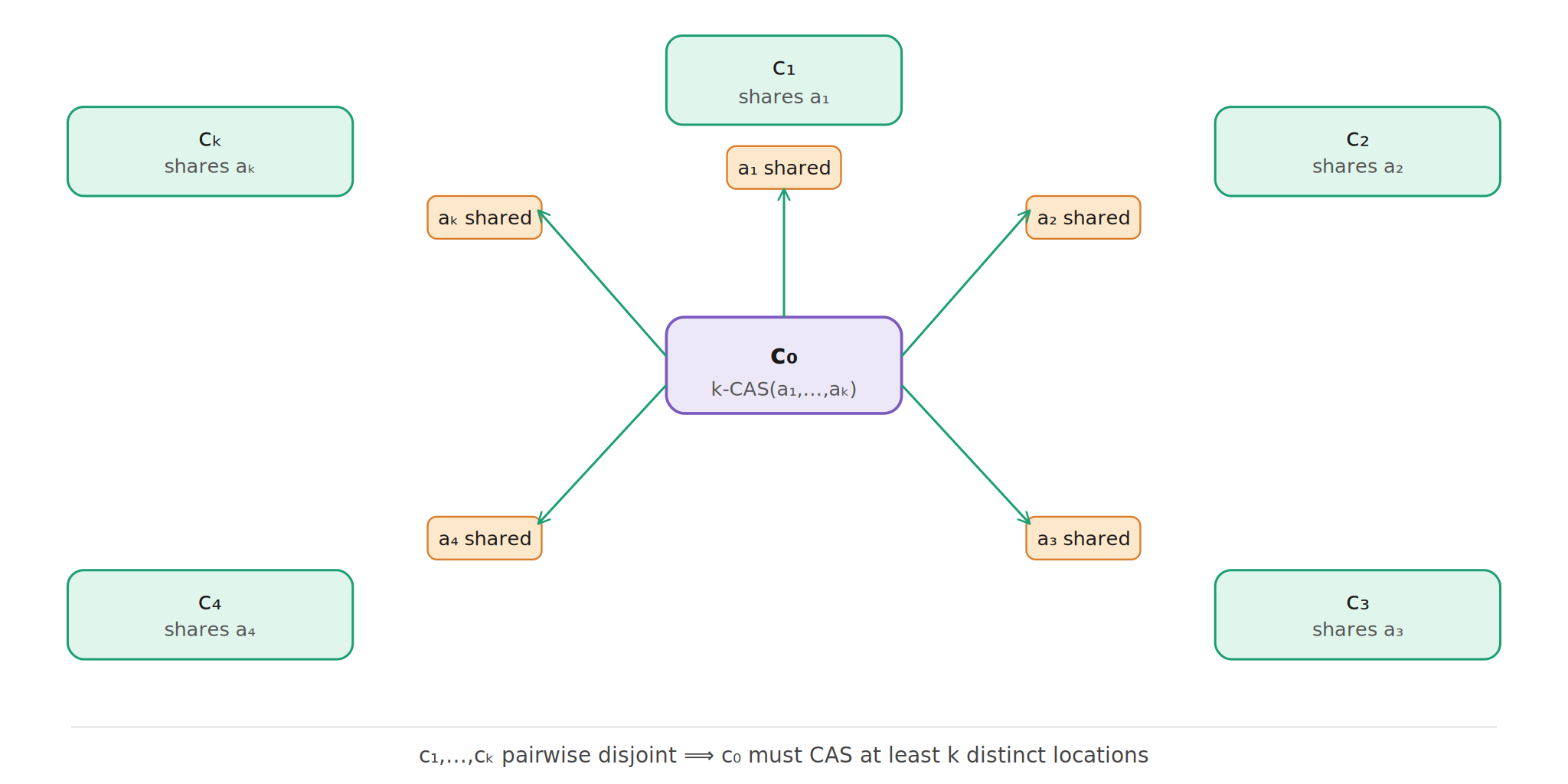

The proof uses a star configuration. There is one central call \(c_0\), and then \(k\) spoke calls \(c_1,\ldots,c_k\). Each spoke conflicts with \(c_0\) on one target word, but the spokes are pairwise disjoint from each other. It is a beautiful little trap: \(c_0\) must somehow coordinate with every spoke, but the spokes should not coordinate with each other if the algorithm is truly disjoint-access-parallel.

The conclusion is not just "CAS is hard." It is sharper: \(k\)-CAS really needs to touch, with CAS, at least \(k\) places in some execution if we want lock-freedom and disjoint-access parallelism. So the best possible software MCAS cannot hope to be dramatically below \(k\). The game becomes: can we get close?

Why the lower bound is more than a counting trick

It is tempting to read the theorem as "of course \(k\) words need \(k\) CASes." But the proof is doing something subtler. An MCAS implementation is allowed to use helper metadata, descriptors, global tables, indirection, clever encodings, and whatever other machinery the programmer invents. The theorem says that if we also demand lock-freedom and disjoint-access parallelism, then some execution still forces a \(k\)-CAS call to perform CAS on at least \(k\) distinct implementation locations.

That matters because without such a lower bound, an algorithm that uses \(k+1\) CASes might merely be "pretty good." With the lower bound, it becomes "one CAS away from the floor." This is the moment where the paper stops being only an implementation paper and starts feeling like a careful map of the design space.

Before this paper, descriptor-based MCAS algorithms were already a known species. The usual pattern was sensible: acquire the words, decide the status, then clean up the words. Sensible, however, does not always mean cheap. If every target word needs one CAS to acquire and one CAS to clean up, we are already at \(2k\), before counting the status word or any extra machinery needed to avoid ABA.

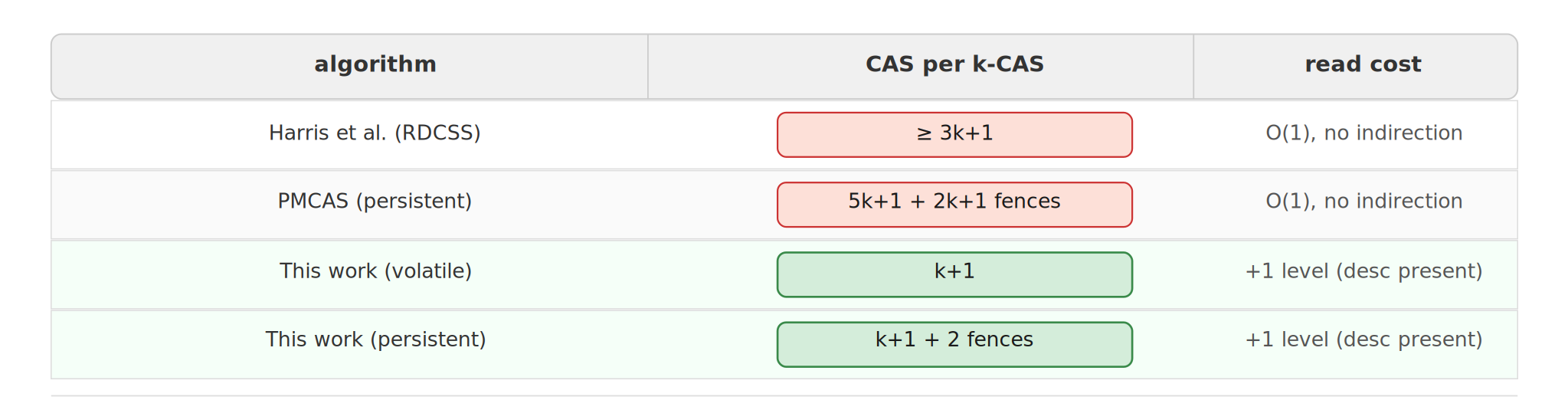

The Harris-Fraser-Pratt style algorithm uses RDCSS (restricted double-compare single-swap) to acquire words safely. That helps with correctness, but it costs additional CAS operations. PMwCAS-style implementations are robust and practical, but in the volatile case they are commonly described as requiring \(3k+1\) CASes per uncontended \(k\)-CAS. Sundell's approach gets to \(2k+1\), but still pays for cleanup on the hot path.

The important line is the third one. The new algorithm does not win by removing descriptors. It wins by letting descriptors remain meaningful after the operation is complete. Once the parent status is final, a word descriptor is no longer an unfinished lock. It is a compact certificate of the logical value.

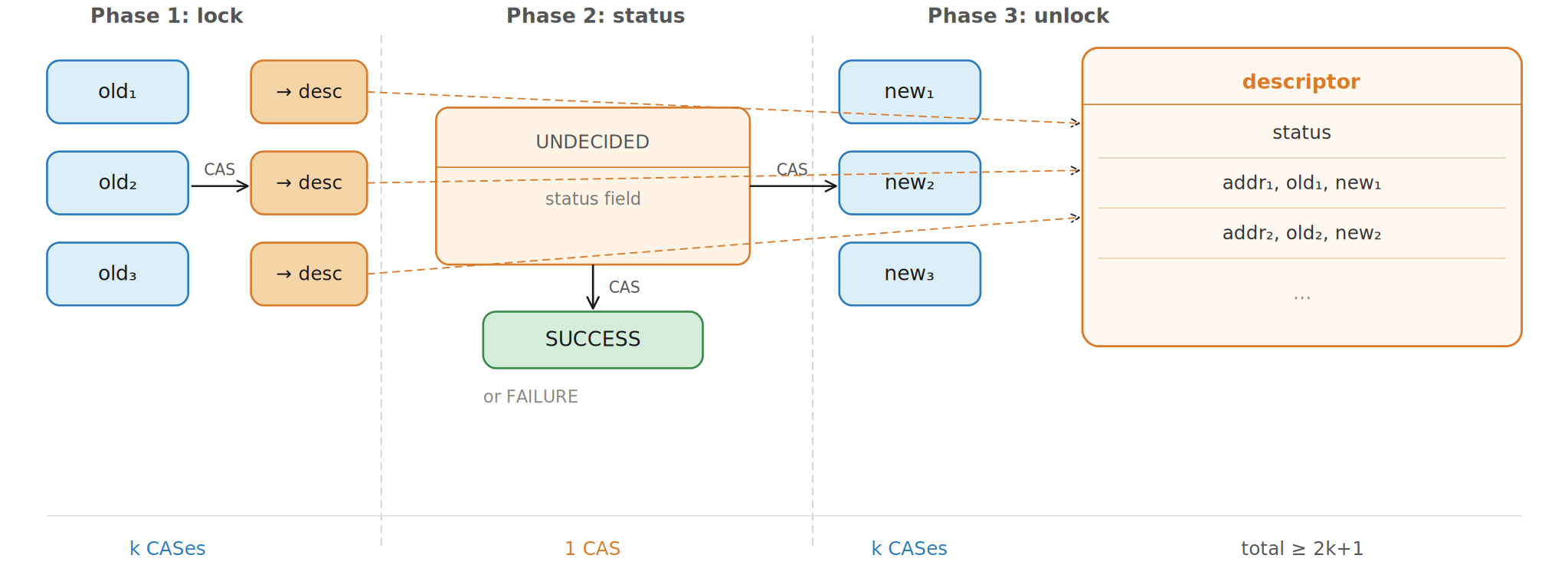

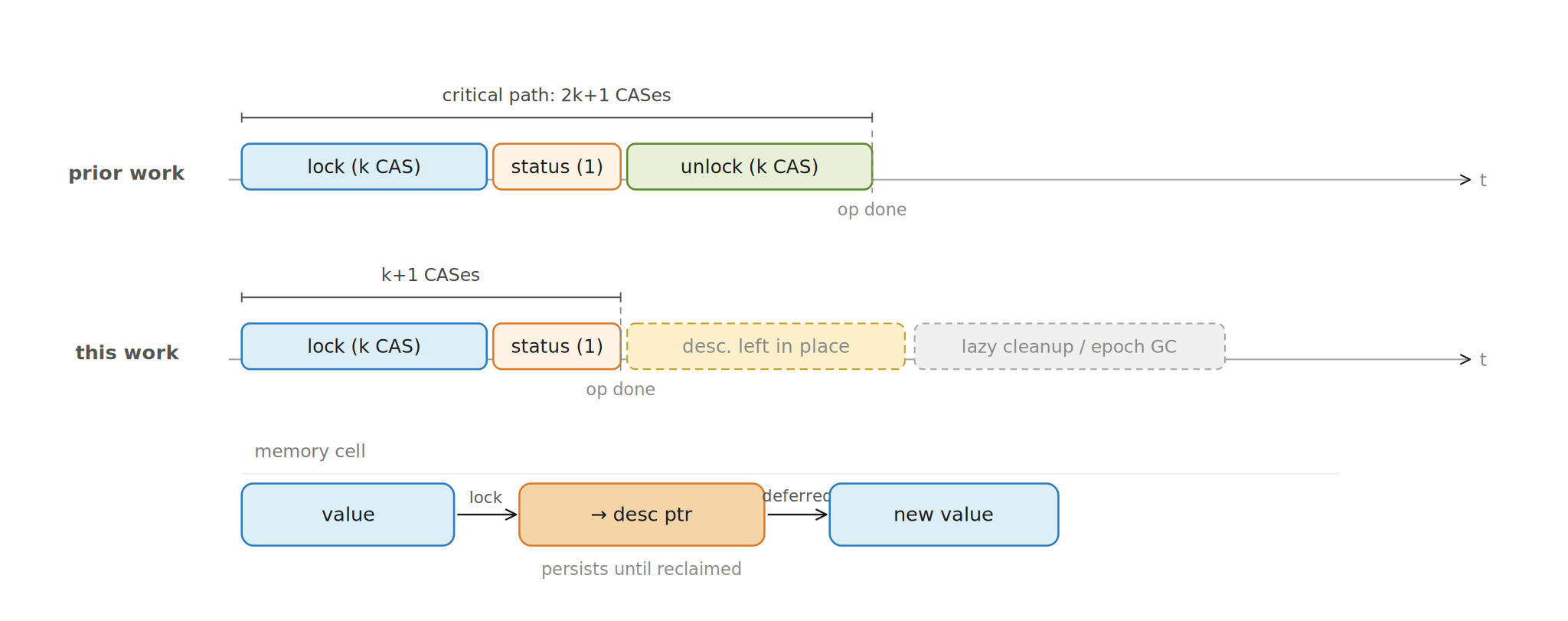

Older descriptor-based MCAS algorithms tend to have three phases. First, lock or acquire the \(k\) target words by replacing their contents with descriptors. Second, flip a status word to say whether the MCAS succeeded or failed. Third, unlock every word by replacing descriptors with the final values. That last phase costs another \(k\) CASes.

Guerraoui et al. observe that the unlocking phase does not need to sit on the critical path. Once the descriptor status is finalized, the logical value of every acquired word is already determined. If the status is successful, the word logically contains the new value. If failed, it logically contains the old value. The physical memory cell may still contain a descriptor pointer, but logical reads know how to interpret it.

Descriptors: the shared operation record

The descriptor is the little passport carried by the operation. It records which addresses are involved, what old values are expected, what new values should appear on success, and the operation's global status. The per-word descriptors point back to their parent MCAS descriptor.

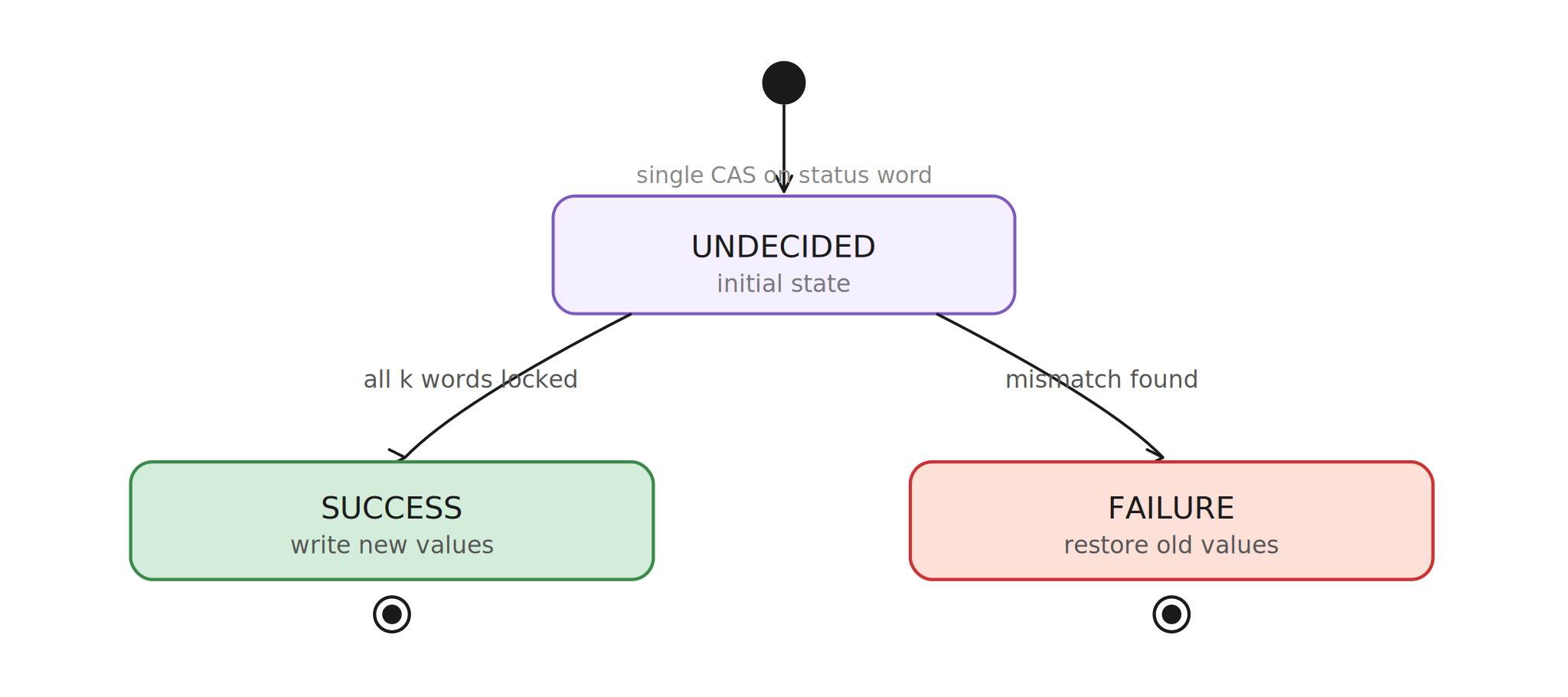

Status is the switch

The status word starts as active. If acquisition of all words succeeds, the status changes to successful. If any target word has a mismatching value, the status changes to failed. That status CAS is the decisive moment: after it happens, every descriptor can be read consistently.

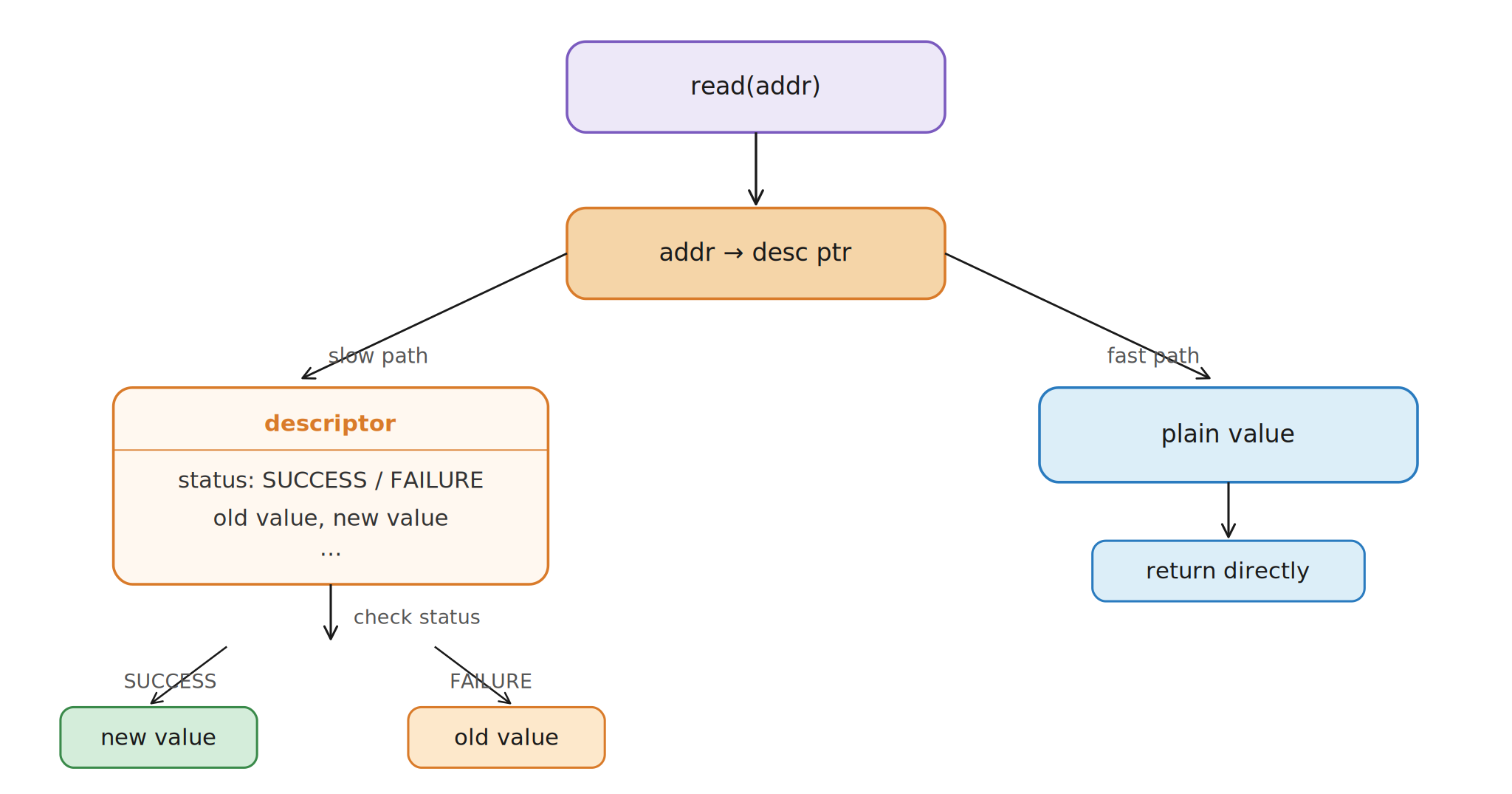

Reads become smarter

Deferred cleanup shifts some complexity into reads. A read may find a plain value, in which case it returns immediately. Or it may find a descriptor. If the descriptor's parent is active and belongs to another operation, the reader helps that MCAS finish. If the descriptor is already finalized, the reader returns the old or new value depending on the parent status.

The core algorithm

The MCAS operation scans the sorted target words. For each one, it obtains the logical current value using readInternal. If the word is already owned by the same descriptor, it continues. If the logical value does not match the expected old value, the operation cannot succeed. Otherwise it tries to install its word descriptor with a CAS. After the loop, one status CAS decides the operation.

What about ABA and cleanup?

The paper's deferred unlocking is not just a trick for saving CASes. It also changes how ABA protection is handled. Older algorithms often use RDCSS-like machinery in the acquisition phase to ensure that the descriptor is still active. Guerraoui et al. lean on the memory reclamation discipline: descriptors are not detached and reused until it is safe, so descriptor identity can remain meaningful. Cleanup becomes lazy and amortized instead of a per-operation tax on the hot path.

Leaving descriptors in place is the move that saves \(k\) cleanup CASes, but it raises three reasonable questions. Do reads become permanently slower? Can descriptors pile up in memory forever? And if a system crashes in persistent memory, how do we know whether a descriptor represents old values or new values?

Lazy reclamation

The paper answers the memory question with an epoch-based reclamation scheme. Finalized descriptors first enter a list of completed-but-not-detached descriptors. Later, when it is safe with respect to active readers and MCAS operations, the implementation detaches them: for each memory word still pointing to the old descriptor, replace the descriptor pointer with the actual logical value. Only after another epoch delay can the descriptor memory be reused.

This scheme does two jobs. It amortizes cleanup so individual MCAS operations do not pay \(k\) extra CASes immediately, and it protects against ABA problems by ensuring that descriptor identities are not recycled while some thread could still be interpreting them. The descriptor may linger, but it cannot safely reappear as a different operation until everyone who might remember the old one has moved on.

Read optimization

Deferred cleanup shifts some cost into reads. If a read finds a descriptor, it inspects the parent status to compute the logical value. The paper describes a simple optimization: a read that sees a finalized descriptor may help replace that descriptor pointer with the actual value. Future reads then take the plain-value fast path. The optimization is a knob: it improves read-heavy phases, but it adds some write traffic back into reads.

• 🗑️ Update fast path (Avoid cleanup now):

  The MCAS operation finishes once the status word is finalized.

  Pro Tip

  We just drop the descriptors and run away! (We'll clean them later)

• 🔍 Read slow path (Follow descriptor):

  Reads compute old or new values by inspecting descriptor status.

  Tradeoff Alert

  Yes, readers do a bit more work. It's the price we pay for blazing fast updates.

• ♻️ Reclamation path (Detach later):

  Epochs delay reuse until active operations cannot hold the descriptor.

  Safety First

  Like putting hazardous waste in a cooling pool before recycling it.

The paper proves correctness carefully. The important invariants are friendly enough to say out loud.

A failed MCAS linearizes when some thread observes a target whose logical value does not match the expected old value and eventually finalizes the descriptor as failed. A successful MCAS linearizes at the status CAS that changes the descriptor from active to successful, after all target words have been acquired. Lock-freedom comes from the helping discipline: threads do not wait for a stuck owner; they push the owner operation to a final state.

Our implementation lives in the Multi-Word-Compare-and-Swap-main repository. The core volatile implementation is in volatile/mcas_volatile.ml. It captures the central volatile descriptor-helping protocol and then uses it to build real concurrent structures.

How values and descriptors are represented

OCaml's type system is happier when values have stable types, but an MCAS cell must sometimes hold a user value and sometimes hold a word descriptor. The implementation uses a private state representation with Obj.t internally, then exposes a typed reference interface at the boundary.

Each public MCAS reference also carries a unique integer id. Before building a descriptor, operations are sorted by this id, and duplicate targets are rejected. That mirrors the paper's "sorted target addresses" assumption in a way that is simple to implement in OCaml.

The simplified OCaml core

The implementation's main helpers map cleanly onto the paper: read_internal performs logical reads and helping, acquire_word tries to install a word descriptor, and mcas_desc runs the acquire loop and final status CAS.

let logical_value wd =
  if is_successful wd.parent then wd.new_value else wd.old_value

and acquire_word desc wd =
  let content, value = read_internal wd.address (Some desc) in
  if state_points_to_word content wd then true
  else if not (same_obj value wd.old_value) then false
  else if Atomic.get desc.status <> Active then false
  else Atomic.compare_and_set wd.address content (Word wd)

Application 1: MCAS snapshot

The baseline snapshot uses double collect: read every register twice and accept the scan if the two collected arrays match. The MCAS snapshot instead reads all slots and then validates the entire array with an MCAS whose expected and desired values are identical. If validation succeeds, the snapshot was stable at a linearization point; otherwise, retry.

Application 2: sorted singly linked-list set

The repository contains two singly linked-list sets. The baseline uses a classic single-word-CAS style with marked links. The MCAS version uses MCAS references for both the next pointer and a separate deleted flag. Insertions validate the predecessor and current node while swinging the predecessor's pointer. Deletions can mark the target node and unlink it as one multi-word operation.

Application 3: doubly linked-list set

The doubly linked list is the nicest demonstration of why MCAS is useful. An insertion wants to update the predecessor's next, the successor's prev, and validate nearby deletion flags. A deletion wants to update both neighboring pointers and mark the removed node. With a global mutex this is conceptually easy but serializes operations. With MCAS, we can keep the operation local and atomic.

Concurrent algorithms are where "it worked once" goes to quietly retire. We used several test styles because MCAS has many ways to be almost right: a stale descriptor here, a forgotten neighbor validation there, a retry loop that accidentally returns before helping an active operation.

The linked-list tests intentionally use small key ranges. That makes contention dense, and dense contention is excellent at exposing whether insertions and deletions validate their local neighborhood correctly. The MCAS tests mix reads, writes, and CAS-style updates, checking that concurrent histories can be linearized against a sequential model.

The paper's evaluation compares the \(k+1\)-CAS algorithm against a state-of-the-art baseline and finds strong wins under contention. Basically, fewer CASes mean less time for threads to trip over each other like clowns in a small car. Our project asks a slightly different question: once we build an MCAS layer in OCaml 5, where does it actually help our own data structures, and where is it just a performance anchor wearing a fancy tuxedo?

We benchmarked across 2, 4, 8, 16, and 32 OCaml domains. The snapshot benchmark used 16 registers and 200,000 operations per domain. The linked-list benchmarks used a key space of 256, prefilled 128 keys, and ran 150,000 operations per domain. The machine available to us had 8 logical CPUs, so the 16- and 32-domain cases intentionally enter oversubscription territory.

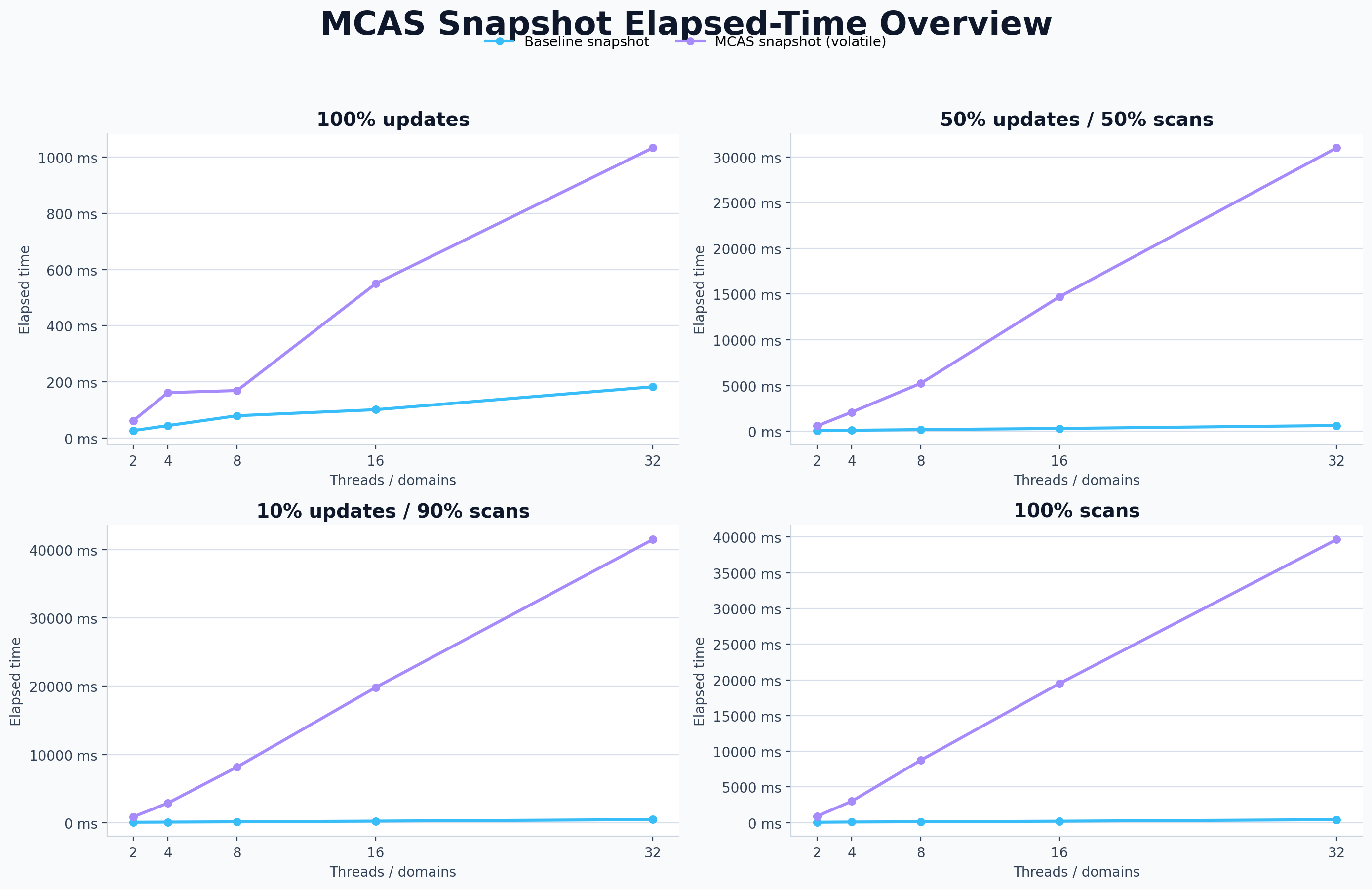

Snapshot: MCAS is elegant, double-collect is fast

The MCAS snapshot is beautifully uniform: every scan becomes an MCAS-based validation. But a double-collect snapshot mostly performs reads, and reads are cheap. In the 100% scan workload at 32 domains, the baseline costs about \(0.067\mu s\) per operation, while the MCAS version costs about \(6.197\mu s\). That is the kind of gap that politely asks you to reconsider your life choices.

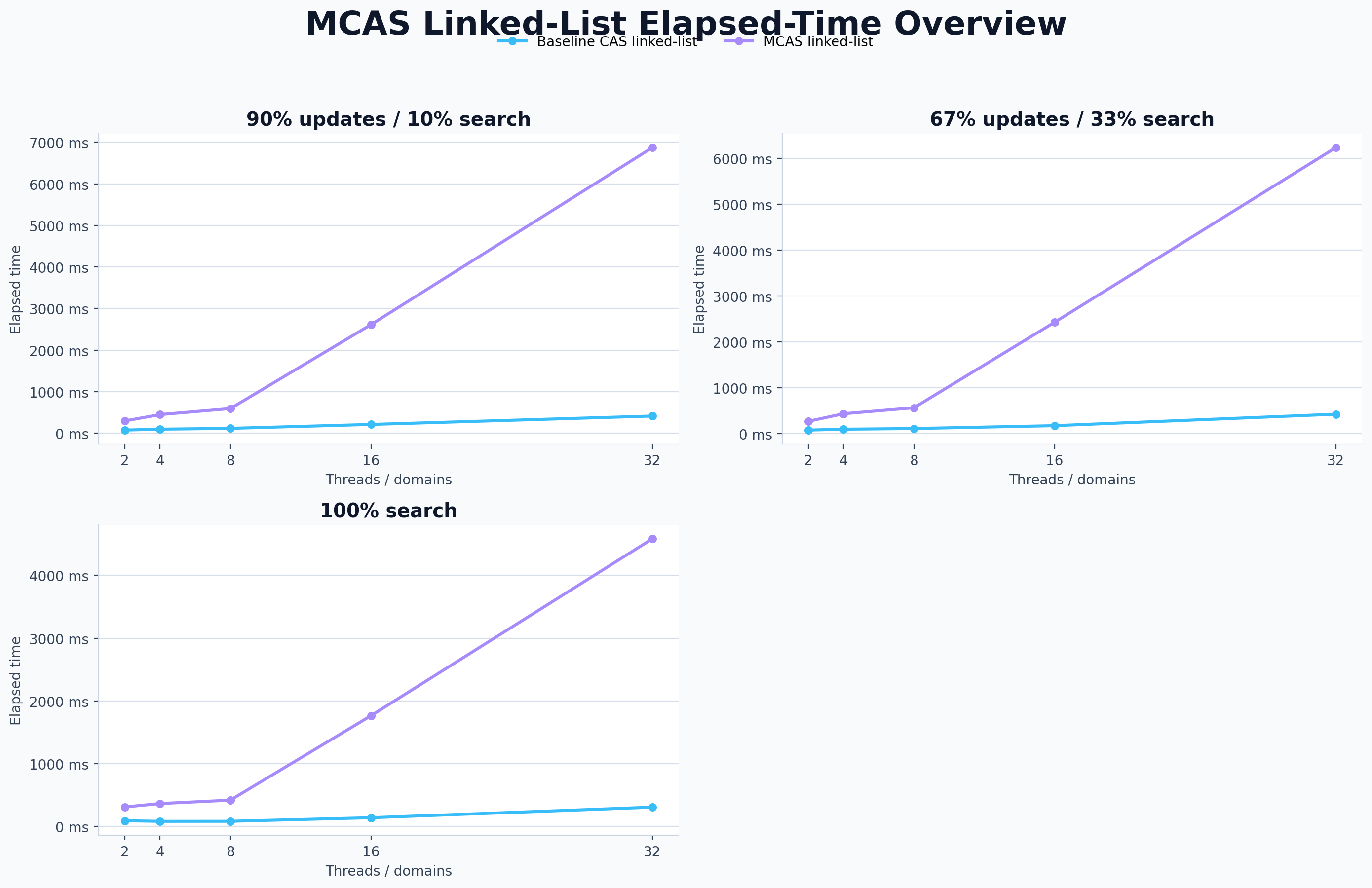

Singly linked list: specialized CAS still wins

The singly linked-list MCAS version is implementation-friendly in some ways, because the pointer update and validation checks can live in one operation. But the baseline is already a specialized lock-free linked list designed for single-word CAS. At 32 domains in the balanced workload, the baseline costs \(0.088\mu s\) per operation, while the MCAS list costs \(1.299\mu s\). Generality is useful, but it is not always faster than a sharp custom tool.

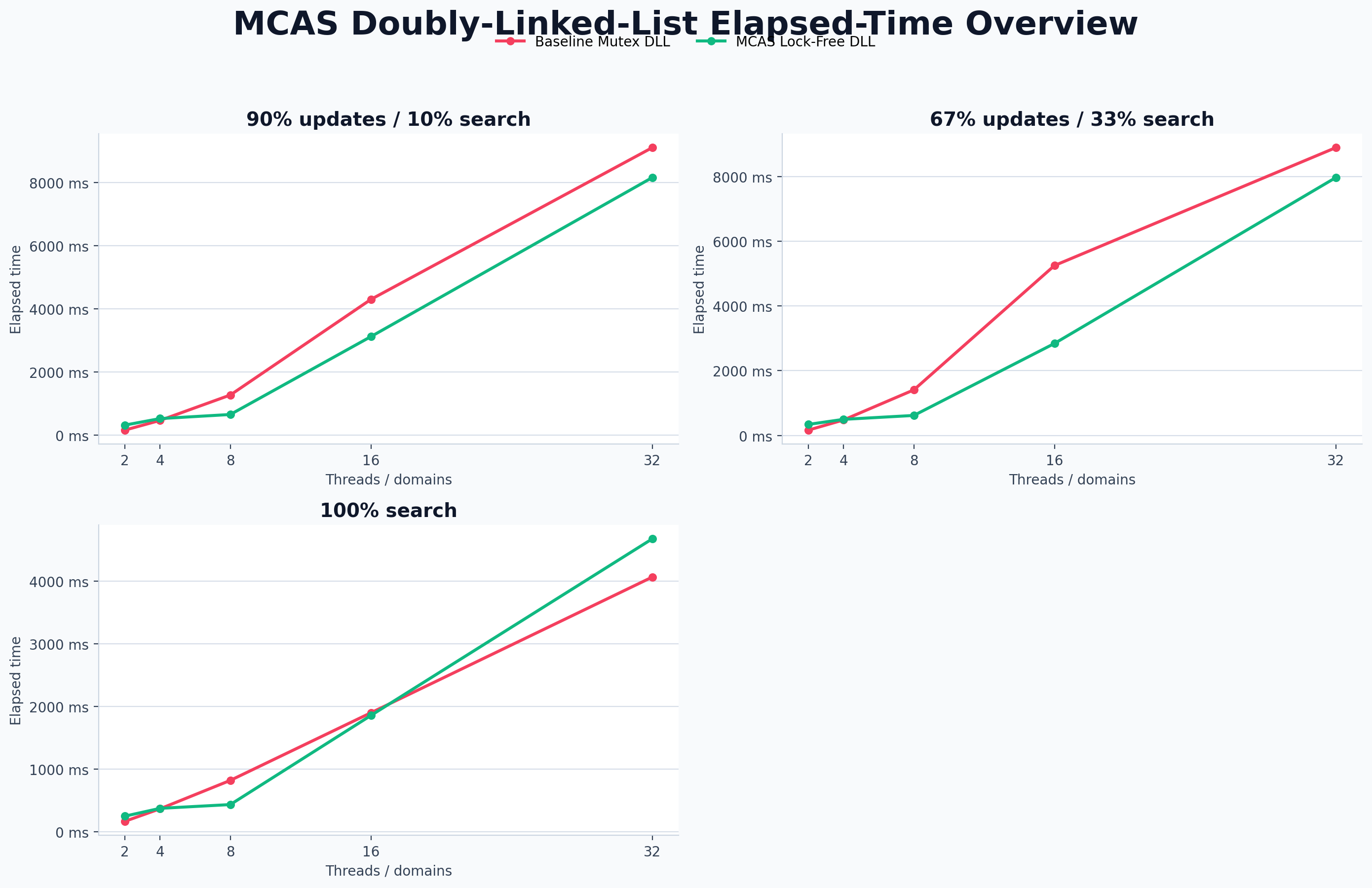

Doubly linked list: now MCAS gets its moment

The doubly linked-list benchmark is where MCAS becomes persuasive. The baseline uses a coarse-grained mutex, while the MCAS version updates several linked fields atomically without a global lock. At 8 domains in the balanced workload, MCAS costs \(0.494\mu s\) per operation versus \(1.061\mu s\) for the mutex baseline. At 32 domains in the update-heavy workload, MCAS remains ahead: \(1.715\mu s\) versus \(2.310\mu s\).

After reading the paper, implementing the volatile version, and benchmarking three families of data structures, my final verdict is: use MCAS when the operation is genuinely a multi-word nightmare, not just as a general-purpose hammer for every synchronization problem.

The paper's theoretical contribution is a beautiful near-optimal CAS complexity: a lower bound of \(k\), and an algorithm at \(k+1\). Our engineering lesson is more textured. MCAS isn't a universal magic wand. It is a very specific, very powerful wrench for when you absolutely need to turn multiple bolts at the exact same time without anyone noticing.

1. Rachid Guerraoui, Alex Kogan, Virendra J. Marathe, and Igor Zablotchi. Efficient Multi-word Compare and Swap. DISC 2020.
2. Timothy L. Harris, Keir Fraser, and Ian A. Pratt. A Practical Multi-word Compare-and-Swap Operation. DISC 2002.
3. Maurice Herlihy and Nir Shavit. The Art of Multiprocessor Programming. Morgan Kaufmann, 2012.
4. Maurice P. Herlihy and Jeannette M. Wing. Linearizability: A Correctness Condition for Concurrent Objects. TOPLAS, 1990.
5. Keir Fraser. Practical Lock-Freedom. University of Cambridge Computer Laboratory, 2004.
6. Yoav Zuriel, Michal Friedman, Gali Sheffi, Nachshon Cohen, and Erez Petrank. Efficient Lock-Free Durable Sets. OOPSLA 2019.
7. The OCaml 5 Atomic and Domain modules, which make this kind of experiment pleasantly direct.
